Visualise many DNA/RNA sequences — visualise_many

visualize_many_sequences() is an alias for visualise_many_sequences() - see aliases.

This function takes a vector of DNA/RNA sequences (each sequence can be any length and they can be different lengths), and plots each sequence as base-coloured squares along a single line. Setting filename allows direct export of a png image with the correct dimensions to make every base a perfect square. Empty strings ("") within the vector can be utilised as blank spacing lines. Colours and pixels per square when exported are configurable.

Usage

visualise_many_sequences(
  sequences_vector,
  sequence_colours = sequence_colour_palettes$ggplot_style,
  background_colour = "white",
  margin = 0.5,
  sequence_text_colour = "black",
  sequence_text_size = 16,
  index_annotation_lines = c(1),
  index_annotation_colour = "darkred",
  index_annotation_size = 12.5,
  index_annotation_interval = 15,
  index_annotations_above = TRUE,
  index_annotation_vertical_position = 1/3,
  index_annotation_full_line = TRUE,
  index_annotation_always_first_base = FALSE,
  outline_colour = "black",
  outline_linewidth = 3,
  outline_join = "mitre",
  return = TRUE,
  filename = NA,
  force_raster = FALSE,
  render_device = ragg::agg_png,
  pixels_per_base = 100,
  monitor_performance = FALSE,
  ...
)

Arguments

sequences_vector: character vector. The sequences to visualise, often created from a dataframe via extract_and_sort_sequences(). E.g. c("GGCGGC", "", "AGCTAGCTA").
sequence_colours: character vector, length 4. A vector indicating which colours should be used for each base. In order: c(A_colour, C_colour, G_colour, T/U_colour).

Defaults to red, green, blue, purple in the default shades produced by ggplot with 4 colours, i.e. c("#F8766D", "#7CAE00", "#00BFC4", "#C77CFF"), accessed via sequence_colour_palettes$ggplot_style.
background_colour: character. The colour the background should be drawn (defaults to white).
margin: numeric. The size of the margin relative to the size of each base square. Defaults to 0.5 (half the side length of each base square).

Note that index annotations can require a minimum margin size at the top or bottom if present above the first/below the last row. This is handled automatically but can mean the top/bottom margin is sometimes larger than the margin setting.

Very small margins ($\le$0.25) may cause thick outlines to be cut off at the edges of the plot. Recommended to either use a wider margin or a smaller outline_linewidth.
sequence_text_colour: character. The colour of the text within the bases (e.g. colour of "A" letter within boxes representing adenosine bases). Defaults to black.
sequence_text_size: numeric. The size of the text within the bases (e.g. size of "A" letter within boxes representing adenosine bases). Defaults to 16. Set to 0 to hide sequence text (show box colours only).
index_annotation_lines: integer vector. The lines (i.e. elements of sequences_vector) that should have their base incides annotated. 1-indexed e.g. c(1, 10) would annotate the first and tenth elements of sequences_vector.

Extra lines are inserted above or below (depending on index_annotations_above) the selected lines - note that the line numbers come from sequences_vector, so are unaffected by these insertions.

Setting to NA disables index annotations (and prevents adding additional blank lines). Defaults to c(1) i.e. first sequence is annotated.
index_annotation_colour: character. The colour of the little numbers underneath indicating base index (e.g. colour of "15" label under the 15th base). Defaults to dark red.
index_annotation_size: numeric. The size of the little number underneath indicating base index (e.g. size of "15" label under the 15th base). Defaults to 12.5.

Setting to 0 disables index annotations (and prevents adding additional blank lines).
index_annotation_interval: integer. The frequency at which numbers should be placed underneath indicating base index, starting counting from the leftmost base. Defaults to 15 (every 15 bases along each row).

Setting to 0 disables index annotations (and prevents adding additional blank lines).
index_annotations_above: logical. Whether index annotations should go above (TRUE, default) or below (FALSE) each line of sequence.
index_annotation_vertical_position: numeric. How far annotation numbers should be rendered above (if index_annotations_above = TRUE) or below (if index_annotations_above = FALSE) each base. Defaults to 1/3.

Not recommended to change at all. Strongly discouraged to set below 0 or above 1.
index_annotation_full_line: logical. Whether index annotations should continue to the end of the longest sequence (TRUE, default) or should only continue as far as each selected line does (FALSE).
index_annotation_always_first_base: logical. Whether to force the first base in each line to always be annotated regardless of whether it occurs at the index_annotation_interval. Defaults to FALSE.
outline_colour: character. The colour of the box outlines. Defaults to black.
outline_linewidth: numeric. The linewidth of the box outlines. Defaults to 3. Set to 0 to disable box outlines.
outline_join: character. One of "mitre", "round", or "bevel" specifying how outlines should be joined at the corners of boxes. Defaults to "mitre". It would be unusual to need to change this.
return: logical. Boolean specifying whether this function should return the ggplot object, otherwise it will return invisible(NULL). Defaults to TRUE.
filename: character. Filename to which output should be saved. If set to NA (default), no file will be saved. Recommended to end with ".png", but can change if render device is changed.
force_raster: logical. Boolean specifying whether ggplot2::geom_raster() should be used even if it will remove text and outlines. Defaults to FALSE.

To make the detailed plots with box outlines, sequence text, and index annotations, ggplot2::geom_tile() is used. However, geom_tile is slower for huge datasets, so there is an option to use geom_raster instead. geom_raster does not support box outlines, sequence text, or index annotations, but is much faster if only the colours are wanted.

geom_raster is automatically used if it will not change the plot (i.e. if all extraneous elements are already off), but can be forced using this argument.
render_device: function/character. Device to use when rendering. See ggplot2::ggsave() documentation for options. Defaults to ragg::agg_png. Can be set to NULL to infer from file extension, but results may vary between systems.
pixels_per_base: integer. How large each box should be in pixels, if file output is turned on via setting filename. Corresponds to dpi of the exported image. Defaults to 100.

Large values (e.g. 100) are required to render small text properly. Small values (e.g. 20) will work when sequence/annotation text is off, and very small values (e.g. 10) will work when sequence/annotation text and outlines are all off.
monitor_performance: logical. Boolean specifying whether verbose performance monitoring should be messaged to console. Defaults to FALSE.
...: Used to recognise aliases e.g. American spellings or common misspellings - see aliases. If any American spellings do not work, please make a bug report at https://github.com/ejade42/ggDNAvis/issues.

Value

A ggplot object containing the full visualisation, or invisible(NULL) if return = FALSE. It is often more useful to use filename = "myfilename.png", because then the visualisation is exported at the correct aspect ratio.

Examples

# \donttest{
## Create sequences vector
sequences <- extract_and_sort_sequences(example_many_sequences)

## Visualise example_many_sequences with all defaults
## This looks ugly because it isn't at the right scale/aspect ratio
visualise_many_sequences(sequences)


## Export with all defaults rather than returning
visualise_many_sequences(
    sequences,
    filename = "example_vms_01.png",
    return = FALSE
)

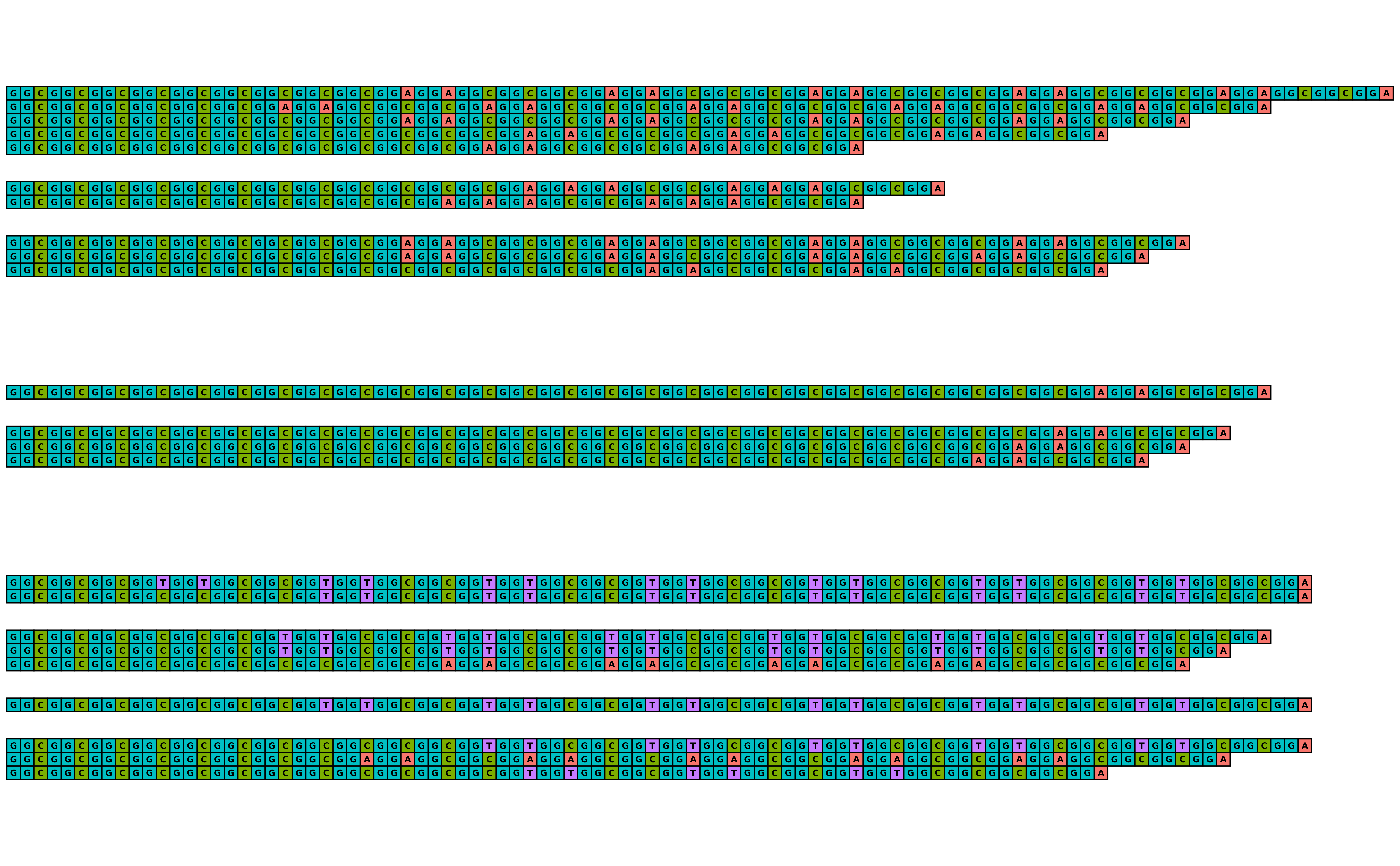

## View exported image
image <- png::readPNG("example_vms_01.png")
unlink("example_vms_01.png")
grid::grid.newpage()
grid::grid.raster(image)


## Export while customising appearance
visualise_many_sequences(
    sequences,
    filename = "example_vms_02.png",
    return = FALSE,
    sequence_colours = sequence_colour_palettes$bright_pale,
    sequence_text_colour = "white",
    index_annotation_interval = 3,
    index_annotation_lines = 1:51,
    index_annotation_full_line = FALSE,
    background_colour = "lightgrey",
    outline_linewidth = 0,
    margin = 0
)

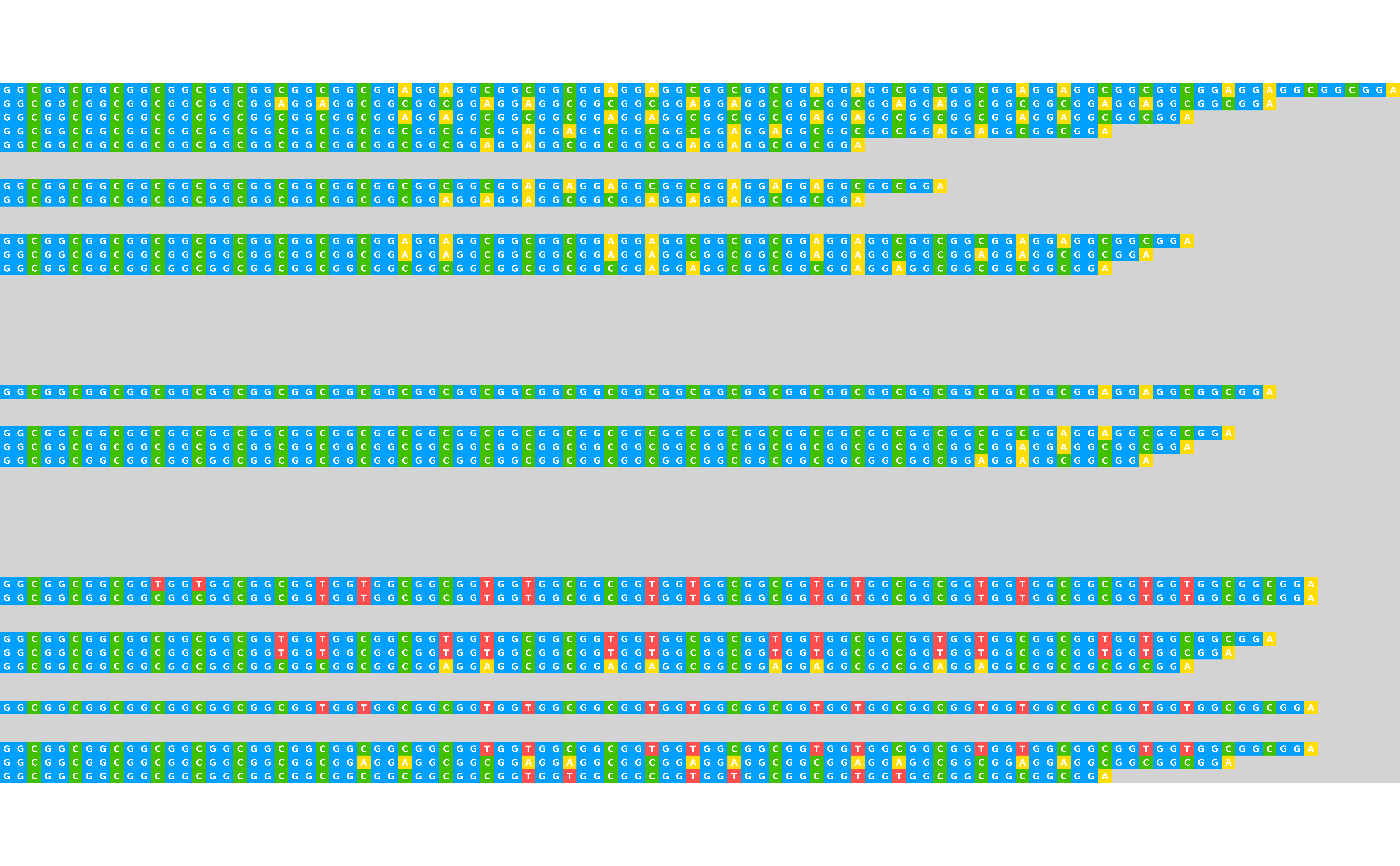

## View exported image
image <- png::readPNG("example_vms_02.png")
unlink("example_vms_02.png")
grid::grid.newpage()
grid::grid.raster(image)

# }
